Here are some pictures of the original engine from my Buick. The previous owner (20 years old) blew it up. Click the pictures for a better view. |

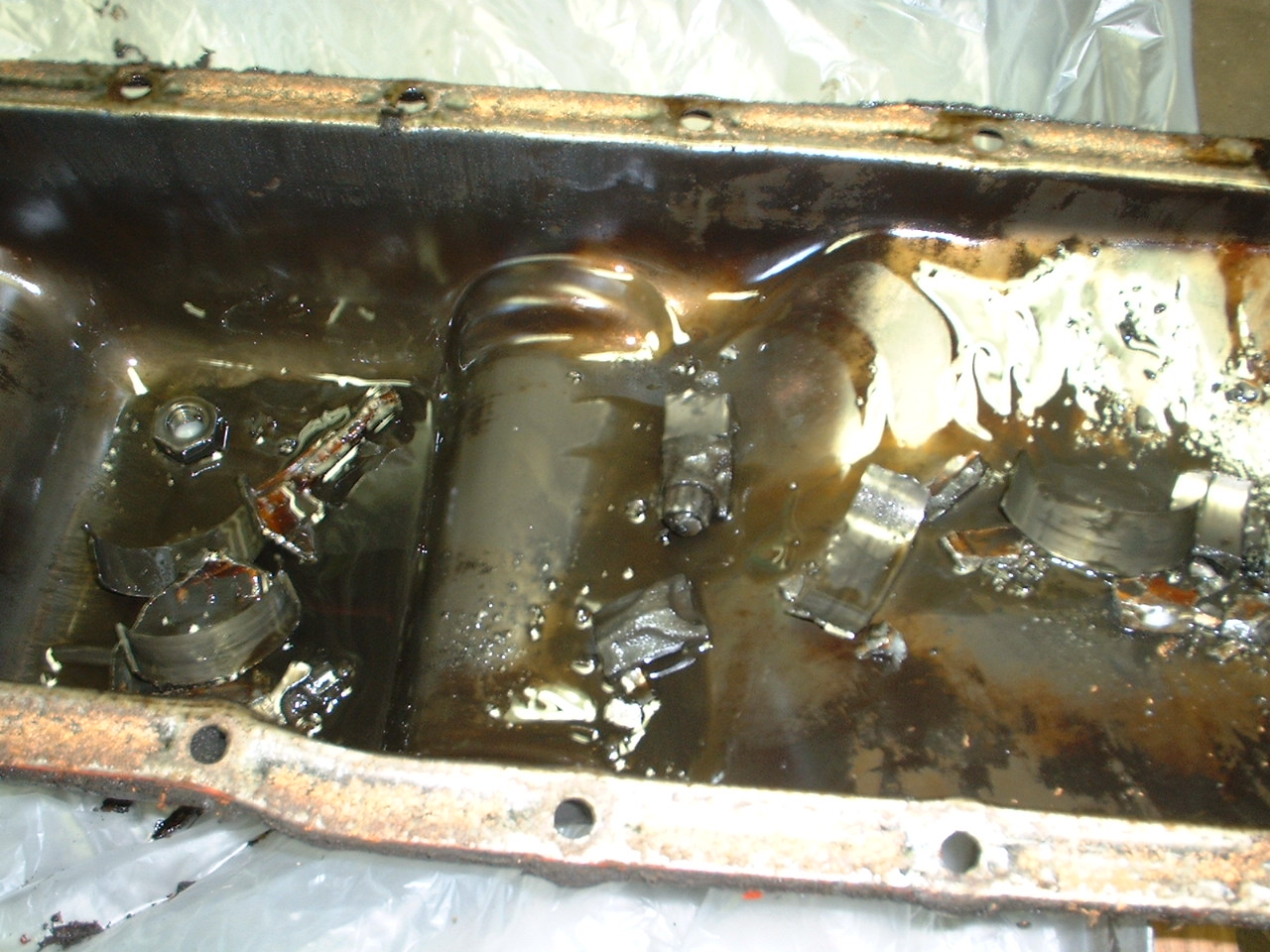

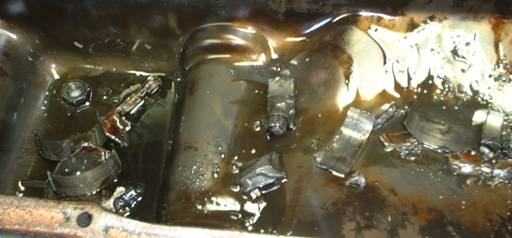

The oil pan, filled with bearings, piston pieces, and part of the connecting rod bolt. |

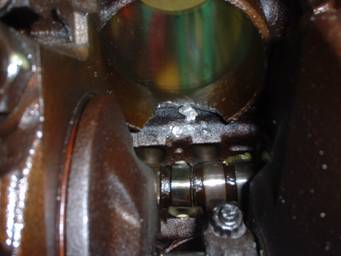

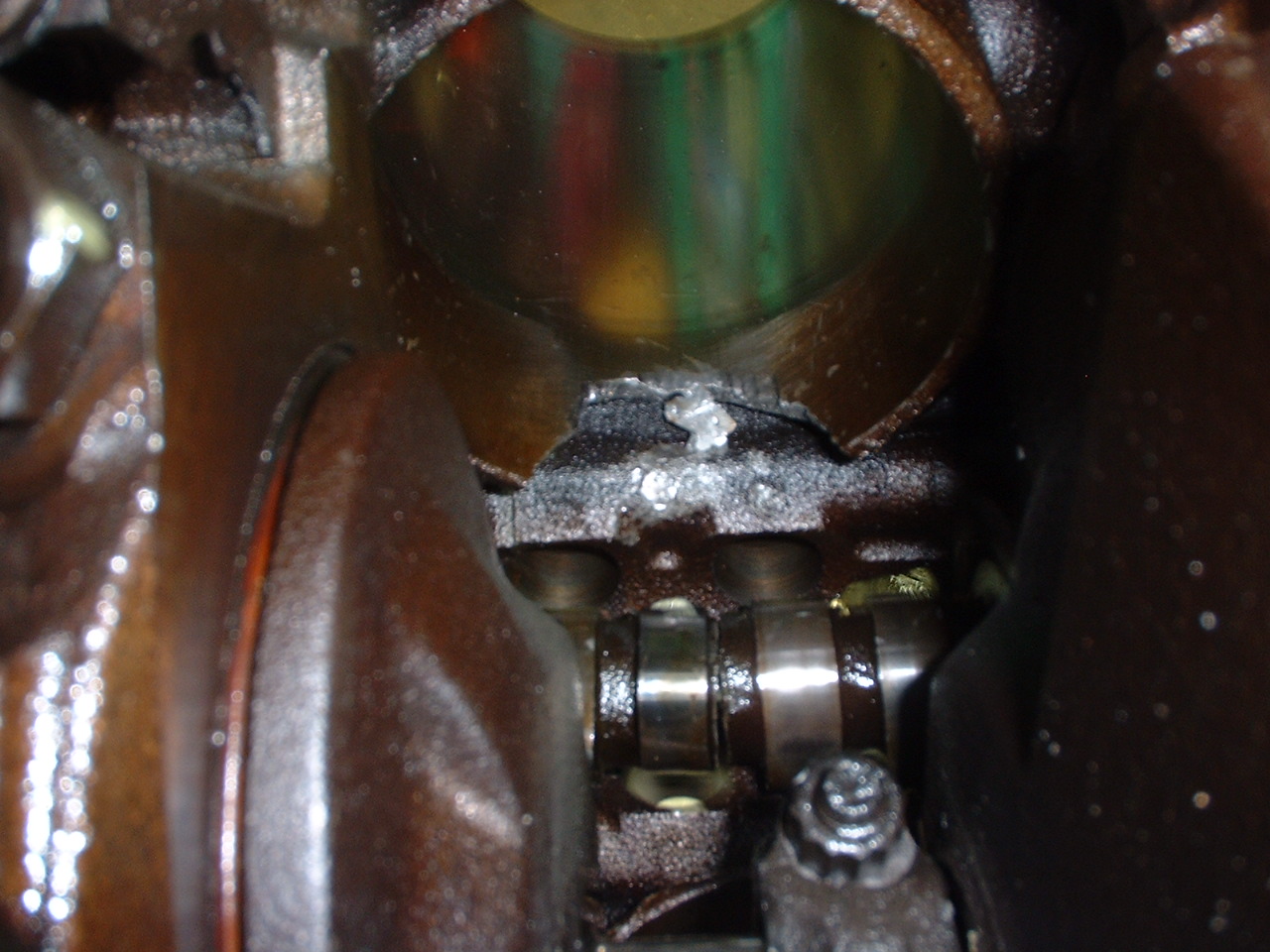

The piston wall where the rod broke the block. The broken cam can be seen just to the left of the connecting rod bolt. |

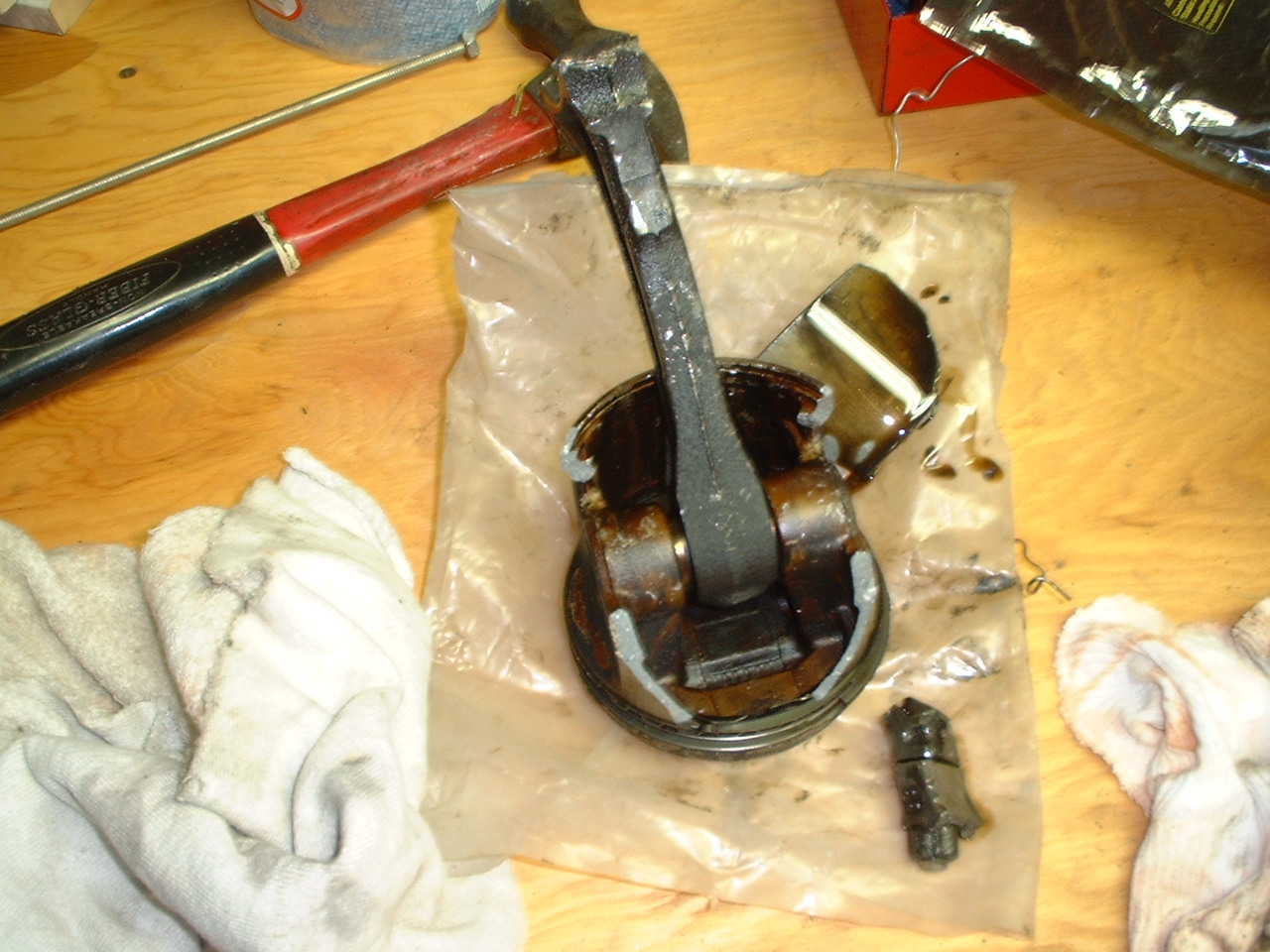

The piston |

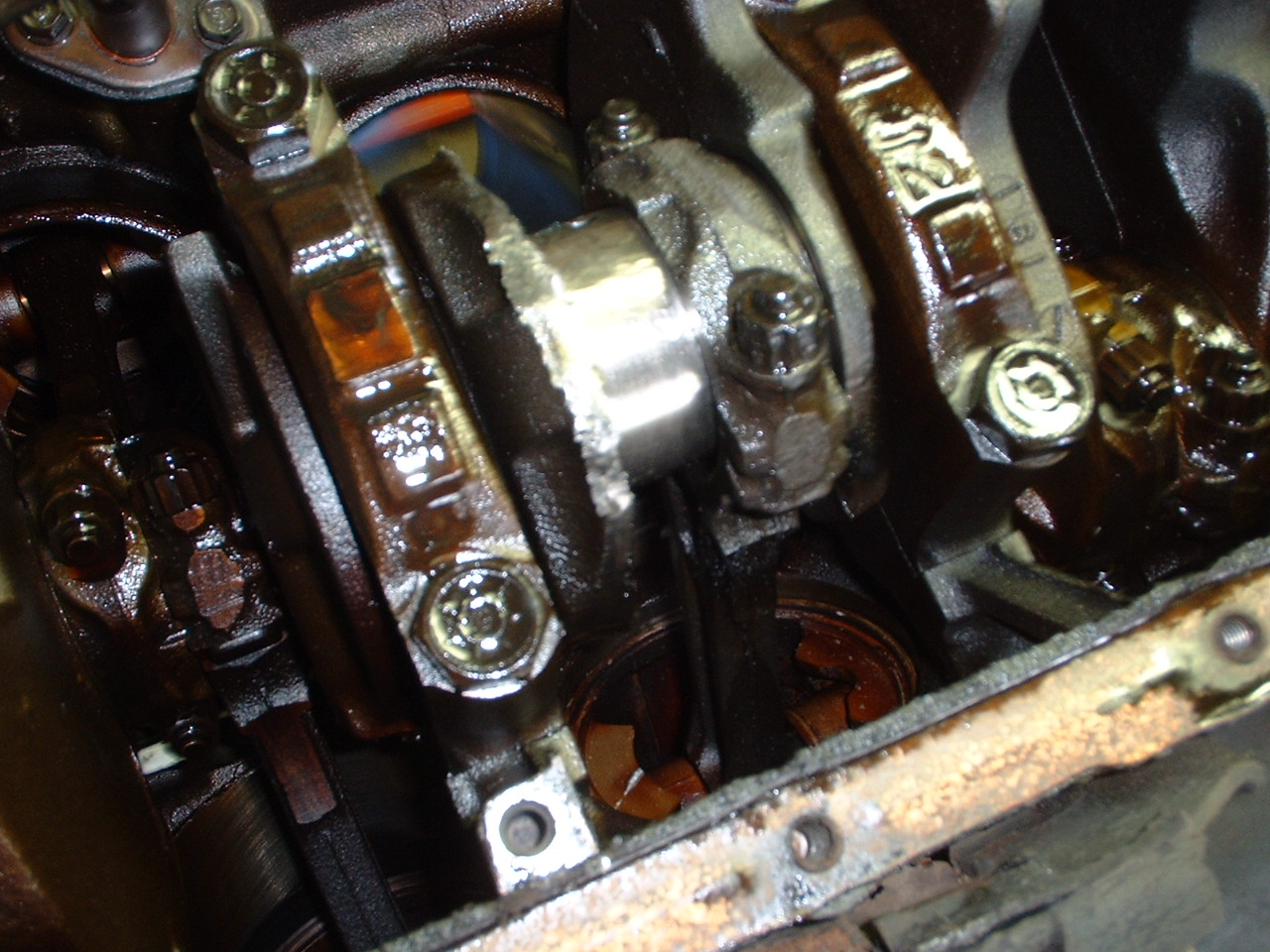

The crank is shot |
The rear of the cam, one of 3 pieces! |
